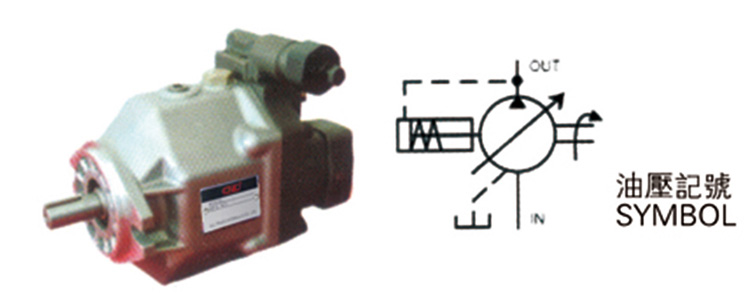

Variable piston pump AR
buying guides for
| AR | 16 | -F | R | 01 | -B | S | K |
|
SERIES NUMBER AR |
DISPLACEMENT (CC/REV) Reference performance table |
Assembly type F：FLANGE TYPE |
rotational direction Viewed from the axial plane R:clockwise L:counter clockwise |
control method 01:Pressure compensation control HI:Load Sensing Control G:Remote control pressure compensation control |
Pressure adjustment range B:12-70(1.2-7) C:12-160(1.2-16) |
Piping direction Unmarked:Rear oiling S:Two side oil discharge (special product) |
haft type K:flat key S:SAE spline |
Performance meter
|
Maximum operating pressure Kgf/cm² |
DISPLACEMENT | Flow rate without load(1/min) |
Pressure adjustment range (kgf/cm²) |
WEIGHT kg | Piping Size | WEIGHT kg | ||||
| c.c/re | 1500 rpm | 1800 rpm | MAX | MIN | EXIT | ENTRANCE | DRAIN | FLANGE TYPE | ||
| 210 | 15.8 | 23.7 | 28.5 | B:12-70 | 1800 | 600 | 3/4" | φ19 | 3/8" | 9.8 |
| 22.2 | 33.3 | 40 | C:12-210 | |||||||
