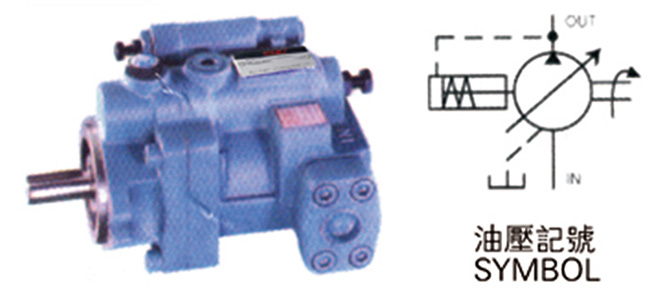

Variable piston pump PVS
buying guides for
| PVS | 16 | -A | 1 | -F | -R | - |
|
SERIES NUMBER Variable piston pumpsPVS |
DISPLACEMENT (CC/REV) Reference performance table |
Assembly type Please refer to the control mode table |
Pressure adjustment range Please refer to the control mode table |
Assembly Method F：FLANGE TYPE L：FOOT TYPE |
direction of rotation From the peripheral end R:Clockwise L:Counterclockwise |
Shaft type K:flat key S:SAE Spline |
performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
DISPLACEMENT | Flow rate without load1/min) |
Pressure adjustment range (kgf/cm²) |
Weight kg | PIPING SIZE | WEIGHT kg | ||||
| c.c/re | 1500 rpm | 1800 rpm | MAX | MIN | EIXT | ENTRANCE | DRAIN | FLANGE TYPE | |||
| PVS08-A*-** | 250 | 8.0 | 12.0 | 14.4 |
0:10~40 1:20~70 2:30-140 3:30-210 4:30-250 |
2000 | 500 | 1/2" | 1/2" | 3/8" | 8 |
| PVS16-A*-** | 16.5 | 24.7 | 29.7 | 3/4" | 1" | 12 | |||||
| PVS22-A*-** | 22.0 | 33.0 | 39.6 | 12 | |||||||
| PVS36-A*-** | 36.0 | 54.0 | 64.8 | 1" | 11/4" | 1/2" | 23 | ||||
| PVS46-A*-** | 46.0 | 69 | 82.8 | 23 | |||||||
| PVS70-A*-** | 70.0 | 105.0 | 126.0 | 1800 | 11/4" | 11/42" | 3/4" | 40 | |||
| PVS100-A*-** | 100.0 | 150.0 | 180.0 | 1800 | 2" | 2" | 3/4" | 60 | |||
