压力阀
当前位置：首页>产品展示

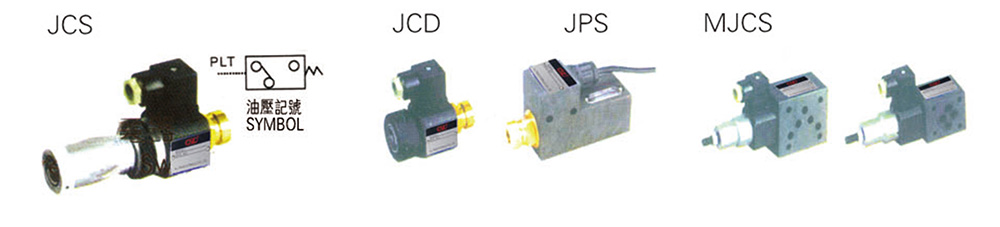

压力继电器
选购指南
| (M)JCS | -2 | P | LL |
|
系列编号 SERIES NUMBER JPS JCS JCD MJCS |
通经 VALVE SIZE 02 03 |
动作型式 CONTROL TYPE P:P油口,PORT A:A油口,PORT B:B油口,PORT W:AB 油口,PORT |
压力调整范围 PRESSURE.ADJ.RANGE 参照性能表 AS SPECIFICATION |
性能表
| 型号 |
最高使用压力 kgf/cm² |
压力调整范围 kgf/cm² |
重量 kg |
| JPS-02HM | 210 | 30-210 | 1.45 |
| LPS-02L | 70 | 25-60 | 1.45 |
| JPS-02LL | 5-60 | 1.45 | |
| JCS-02N | 210 | 30-210 | 1 |
| JCS-02NL | 70 | 25-60 | 1 |
| JCS-02NLL | 5-60 | 1 | |
| JCD-02S | 30 | 4-26 | 0.8 |
|
MJCS-02PN MJCS-02AN MJCS-02BN MJCS-02WN |
210 | 30-210 | 1.8 |
| 2.5 | |||
|
MJCS-02PL MJCS-02AL MJCS-02BL MJCS-02WL |
70 | 25-60 | 1.8 |
| 2.5 | |||
|
MJCS-02PLL MJCS-02ALL MJCS-02BLL MJCS-02WLL |
5-60 | 1.8 | |
| 2.5 | |||
|
MJCS-03PN MJCS-03AN MJCS-03BN MJCS-03WN |
210 | 30-210 | 2.8 |
| 2.5 | |||
|
MJCS-03PL MJCS-03AL MJCS-03BL MJCS-03WL |
70 | 25-60 | 2.8 |
| 3.5 | |||
|
MJCS-03PLL MJCS-03ALL MJCS-03BLL MJCS-03WLL |
5-60 | 2.8 | |
| 3.5 |
