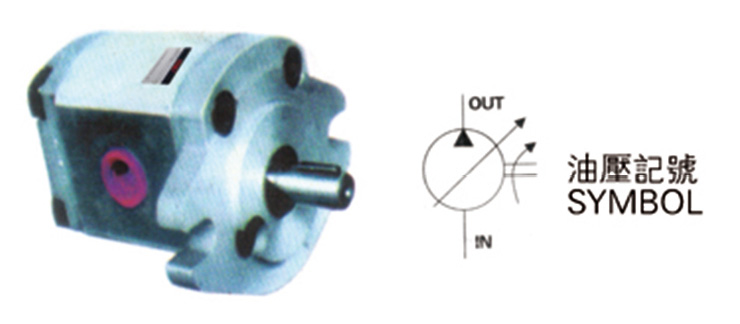

single gear pump HGP-1A
buying guides for
| HGP | 1A | F | 6 | R | X | 2B |
|
Series Number HGP |
Size and Style 1A |
Assembly Method
F：Flange Type |
Vomit Volume Refer to the performance table |
Rotation Direction R：Clockwise Direction L：Counter-clockwise Direction |
Mandrel Form X：parallel key Y：plum blossom |
2B: 4BD: 4DE: |
Performance Table
| Pump type number | Protrusion cc/rev | pressure | rotation speed | Oil outlet size | weight/kg | ||||
| work | highest | RATE | MAX | MIN | IN | OUT | |||
| HGP-1A-F1-R | 1 |
210 (3000) |
250 (3500) |
1800 | 1000 | 3/8" | 1.0 | ||
| HGP-1A-F2-R | 2 | 4500 | 6000 | 1.05 | |||||
| HGP-1A-F3-R | 3 | 1.15 | |||||||
| HGP-1A-F4-R | 4 | 4000 | 1.18 | ||||||
| HGP-1A-F5-R | 5 | 1.2 | |||||||
| HGP-1A-F6-R | 6 | 3200 | 1.3 | ||||||
| HGP-1A-F8-R | 7.8 | 1/2"| | 3/8" | 1.3 | |||||
