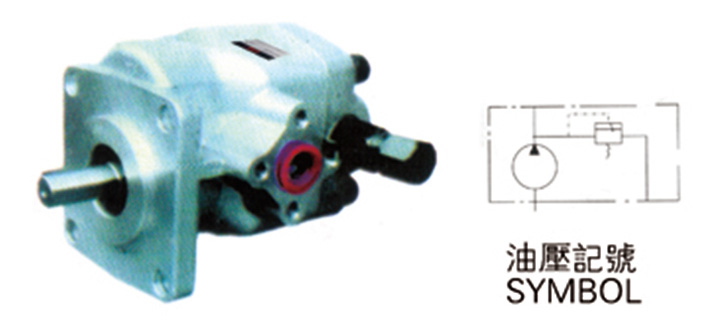

Gear pump with pressure regulating valve PRI series
buying guides for
| PRI | 020 | Maximum pressure | Flange type |
| Series Number | Vomit volume 2cc/rev | 210bar(3000psl) | JIS4 Hole type |
Performance Table
| Model | Protrusion | pressure psi | speed rpm | weight kg | |||
| Work | Highest | RATE | MAX | MIN | |||
| PRI-020 | 2 |
175 (2500) |
210 (3000) |
1800 | 5000 | 900 | 1.7 |
| PRI-030 | 3 | 5000 | 850 | ||||
| PRI-040 | 4 | 4500 | 800 | ||||
| PRI-060 | 6 | 3500 | 700 | ||||
| PRI-075 | 7.5 | 3000 | 600 | ||||
| PRI-090 | 9 | 2500 | 550 | ||||
| PRI-105 | 10.5 | 2500 | 500 | ||||
| PRI-120 | 12 | 2500 | 500 | ||||
