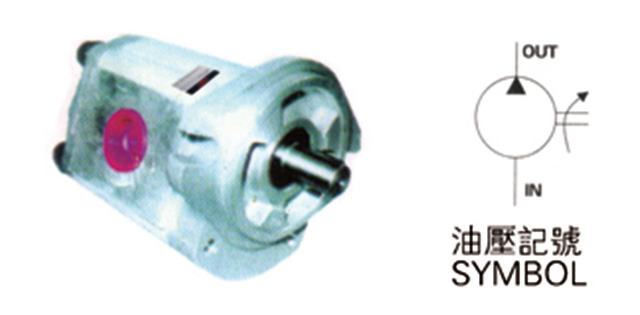

single gear pump HGP-3A
buying guides for
| HGP | 3A | F | 13 | R | X | 10 | 2B |
|
Series Number HGP |
Size and style 3A |
Fixed method F：Flange type |
Vomit volume 13 |
The direction of rotation is viewed from the side of the central axis R：Clockwise L：Anticlockwise |
Mandrel form X：Parallel key Y：Plum blossom key Z：Push and dial keys |
flange type 2B：SAE2Hole type 4BD：DIN4Hole type : |
Serial Number 10 |
Performance Table
| Pump type number | Protrusion cc/rev | Pressure kgf/cm² | Speed rpm | Oil outlet size | Weight kg | ||||
| Work | Highert | Speed | MAX | MIN | Export | Inlet | |||
| HGP-3A-*6* | 6 |
210 (3000) |
250 (3500) |
180 | 3000 | 700 | PT3/4 | PT1 | 2.25 |
| HGP-3A-*8* | 8.4 | 2.40 | |||||||
| HGP-3A-*11* | 11 | 600 | 2.55 | ||||||
| HGP-3A-*13* | 13 | 2.70 | |||||||
| HGP-3A-*14* | 14.3 | 400 | 2.85 | ||||||
| HGP-3A-*17* | 16.5 | 3.05 | |||||||
| HGP-3A-*19* | 19.2 | 3.20 | |||||||
| HGP-3A-*23* | 23 | 3.35 | |||||||
| HGP-3A-*25* | 25 |
140 (2000) |
175 (2500) |
PT1 | PT3/4 | 3.50 | |||
| HGP-3A-*28* | 28 | 3.60 | |||||||
| HGP-3A-*30* | 30 | 3.60 | |||||||
