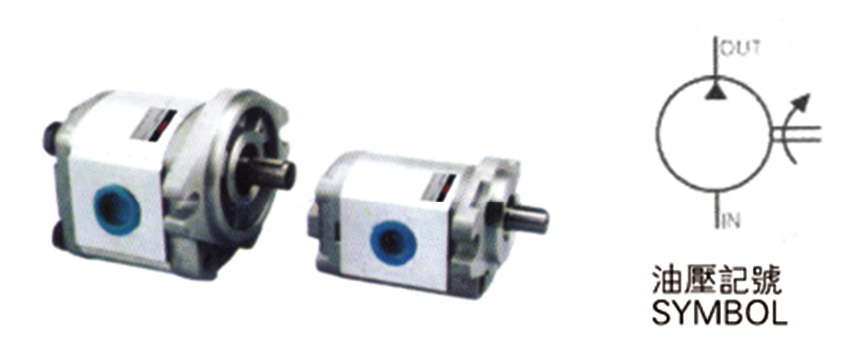

Fixed displacement gear pumps P1,P2
buying guides for
| P1 | Displacement | R | P | 01 | G | T |
|
Series Number SERIES NUMBER P1 P2 |
DELVERY(cc/rew) According to the performance table REFER TO SPECIFICATION |
Rotation direction (viewed from the end axis) SHAFT ROTATING(VIEW FROM SHAFT END) R:Clockwise direction L:Reverse pointer direction |
Size of oil inlet and outlet N:NPT,U:UNF P:PT,F:French bacterial type LFLANGE Refer to the specification table |
Rotation axis code SHAFT TYPE 01:Standard type 10: 12: |
Flange code G:Standard type (P1 type)) STANDARD D:Standard type (P2 type) STANDARD |
Backend code COVER TYPE T:Standard type STANDARD |
Performance Table
|
Model MODEL |
Displacement DELIVERY (cc/rev) |
Maximum working pressure MAX PRESSURE kgf/cm |
Continuous use pressure CONTINUES OPERATING |
Permissible speed | Piping Size |
Weight(kg) WEIGHT |
||
| Heightest | Lowest | Inlet | Export | |||||
| P101 | 1.3 | 250 | 210 |
400 0 |
600 | 1/2" | 3/8" | 0.82 |
| P102 | 2 | 0.91 | ||||||
| P127 | 2.7 | 1 | ||||||
| P135 | 3.4 | 1.05 | ||||||
| P104 | 4.1 | 1.1 | ||||||
| P105 | 5.1 | 1.14 | ||||||
| P106 | 6.1 | 1.18 | ||||||
| P107 | 7.4 | 230 | 200 |
250 0 |
3/4" | 1/2" | 1.27 | |
| P109 | 9.1 | 1.32 | ||||||
| P204 | 4 | 250 | 210 |
400 0 |
232 | |||
| P206 | 6.2 | 2.45 | ||||||
| P208 | 8.4 | 2.55 | ||||||
| P211 | 11 | 2.73 | ||||||
| P214 | 14.3 | 2.82 | ||||||
| P216 | 16.5 | 2.91 | ||||||
| P219 | 19.2 | 2.14 | ||||||
| P222 | 22.5 | 2.27 | ||||||
| P225 | 25 | 230 | 190 |
250 0 |
1" | 3/4" | 3.36 | |
| P233 | 33 | 359 | ||||||
