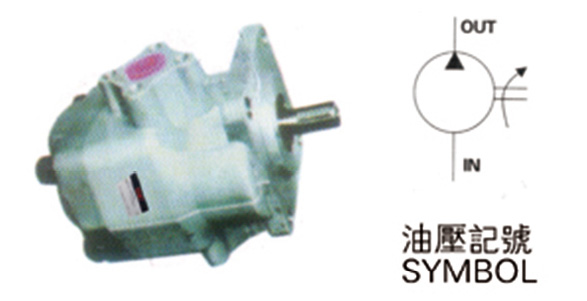

single gear pump HGP-2A
buying guides for
| HGP | 2A | F | 06 | R | X | 2B |
|
Series Number HGP |
Size and style 2A |
Assembly method F：Flange type L：FOOT TYPE |
Vomit volume Refer to the performance table |
Rotation direction R：Clockwise direction L：Counter-clockwise direction |
Mandrel form X：Parallel key Y：Plum blossom |
4BJ: |
Performance Table
| Pump type number | Protrusion cc/rev | Pressure | Rotation speed | weight kg | |||
| Work | Highest | RATE | MAX | MIN | |||
| HGP-2A-F2-R | 2 |
210 (3000) |
250 (3500) |
1800 | 5000 | 900 | 1.63 |
| HGP-2A-F3-R | 3 | 850 | 1.65 | ||||
| HGP-2A-F4-R | 4 | 4500 | 800 | 1.67 | |||
| HGP-2A-F6-R | 6 | 3500 | 700 | 1.69 | |||
| HGP-2A-F8-R | 7.5 | 3000 | 600 | 1.72 | |||
| HGP-2A-F9-R | 9 |
175 (2500) |
210 (3000) |
2500 | 550 | 1.75 | |
| HGP-2A-F11-R | 10.8 | 2000 | 500 | 1.77 | |||
| HGP-2A-F12-R | 12 | 1.80 | |||||
