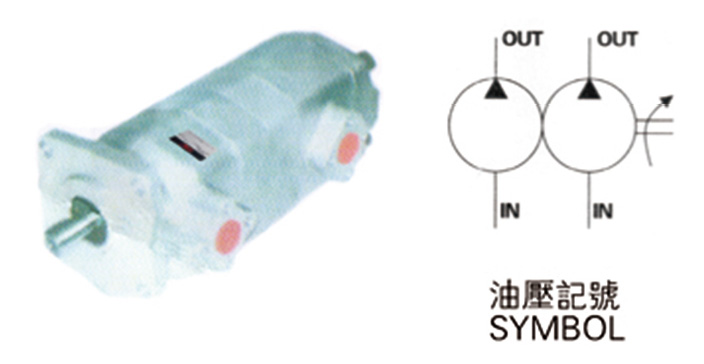

dual-gear pump HGP-22A
buying guides for
| HGP | 22A | F | 66 | R | X | 4BJ |
|
Series Number HGP |
Size and style |
Assembly method F：Flange type L：FOOT TYPE(33A YES) |
Vomit volume Refer to the performance table |
Rotation direction R：Clockwise L：Anticlockwise |
Mandrel form X：Parallel key Y：Plum blossom key Z：Push and dial keys |
Flange form 22A is 4BJ：JIS4 hole type 33A is 2B：SAE2 hole type |
Performance Table
| Pump type number | Protrusion(cc/rev) | Maximum pressure(PSI) |
| HGP-22A-22-R | 2+2 |
210 (3000) |
| HGP-22A-33-R | 3+3 | |
| HGP-22A-44-R | 4+4 | |
| HGP-22A-66-R | 6+6 | |
| HGP-22A-88-R | 8+8 | |
| HGP-22A-99-R | 9+9 | |
| HGP-22A-1111-R | 11+11 | |
| HGP-22A-1212-R | 22+22 |
