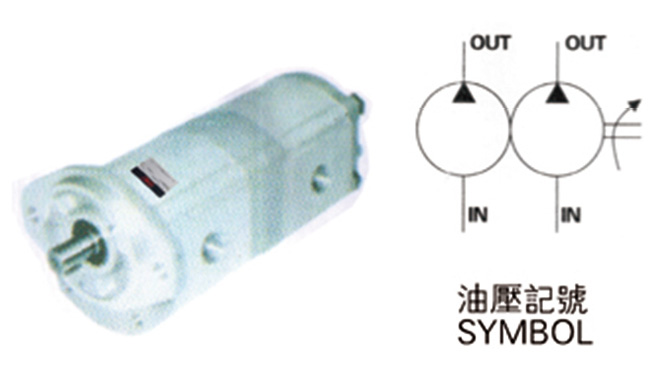

dual-gear pump HGP-33A
buying guides for
| HGP | 33A | F | 66 | R | X | 4BJ |
|
Series Number HGP |
Size and style |
Assembly method F：Flange type L：FOOT TYPE(33A YES) |
Vomit volume Refer to the performance table |
Rotation direction R：Clockwise L：Anticlockwise |
Mandrel form X：Parallel key Y：Plum blossom key Z：Push and dial keys |
Flange form 33A is 2B：SAE2 Hole type |
Performance Table
| Pump type number | Protrusion(cc/rev) | Maximum pressure(PSI) |
| HGP-33A-66-R | 6+6 |
210 (3000) |
| HGP-33A-88-R | 8.4+8.4 | |
| HGP-33A-1111-R | 11+11 | |
| HGP-33A-1313-R | 13+13 | |
| HGP-33A-1414-R | 14.3+14.3 | |
| HGP-33A-1717-R | 16.5+16.5 | |
| HGP-33A-1919-R | 19.2+19.2 | |
| HGP-33A-2323-R | 23+23 | |
| HGP-33A-2525-R | 25+25 | |
| HGP-33A-2828-R | 28+28 | |
| HGP-33A-3030-R | 30+30 |
