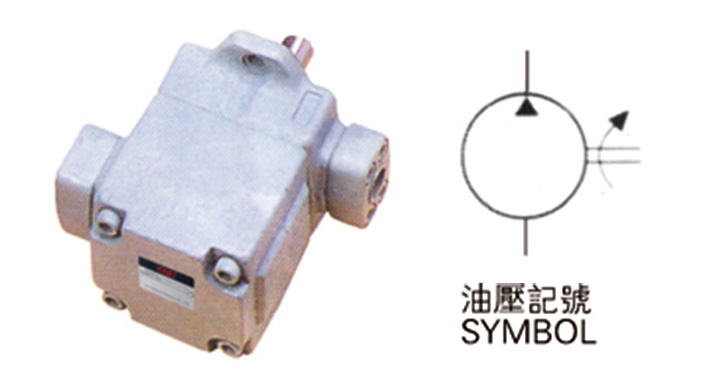

PV2R series high-pressure quantitative vane pumps
buying guides for
| PV2R1 | 23 | F | R | U | R |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
1: SERIES CODE
2: DISPLACEMENT
3: MOUTING TYPE
4: ROTATION
5: INLET DIRECTION
6: OUTLET DIRECTION
▶ MOUTING TYPE ACCORDING TO ③
MOUTING TYPE
F: flang type
L: foot type
▶ ROTATION ACCORDING TO ④
ROTATION
R:clockwise
L:counter clockwise
From shaft end
▶ INLET&OUTLET DIRECTION ⑤⑥
INLET&OUTLET DIRECTION
R:RIGHT SIDE
L:LEFT SIDE
U:UPPER
D:DOWN WORTH
From shaft end
Performance Table
|
MODEL NUMBER MODEL NUMBER |
DISPLACEMENT DISPLACEMENT |
MAXIMUM PRESSURE(PSI) MAXIMUM PRESSURE |
WEIGHT kg | |
| Flange type | FOOT TYPE | |||
| PV2R1-06 | 6.1 |
210Kgf/cm² 3000psi |
9 | 11.2 |
| PV2R1-08 | 8 | |||
| PV2R1-10 | 10.1 | |||
| PV2R1-12 | 12.2 | |||
| PV2R1-14 | 13.7 | |||
| PV2R1-17 | 16.6 | |||
| PV2R1-19 | 18.6 | |||
| PV2R1-23 | 22.7 | |||
| PV2R1-25 | 25.3 | |||
| PV2R1-31 | 31 | 145Kgf/cm² | 19 | 23.3 |
| PV2R1-33 | 33 | 175Kgf/cm² | ||
| PV2R1-41 | 41.3 | |||
| PV2R1-47 | 47.2 | |||
| PV2R1-53 | 53.1 | |||
| PV2R1-59 | 59.2 | 145Kgf/cm² | ||
| PV2R1-65 | 65.2 | |||
