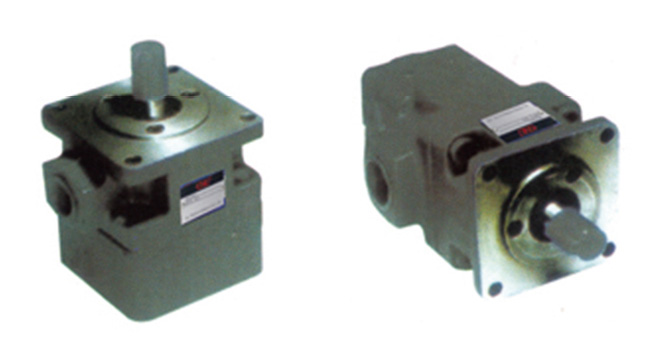

YB1-series vane pump
※ Features and uses
YB1 blade pump system is a medium pressure, double acting, quantitative hydraulic pump suitable for medium and low hydraulic systems in metal cutting machine tools or other machinery. The pump is generally in forward rotation and can be installed in reverse as needed. The dual pump consists of two pumps, each of which maintains its displacement. The driving power is the sum of the two single pumps, and the pressure and speed are the same as those of the single pump.
※ Technical Parameter
| MODEL specifications | Displacement ml/r | Pressure Mpa | Speed rpm | Volumetric efficiency% | Drive power Kw | Weight kg |
| YB1-2.5 | 2.5 | 6.3 | 1450 | ≥68 | 0.9 | 5 |
| YB1-4 | 4 | ≥85 | 1.1 | |||
| YB1-6.3 | 6.3 | ≥88 | 1.5 | |||
| YB1-10 | 10 | ≥88 | 2.3 | |||
| YB1-16 | 16 | 960 | ≥88 | 2.3 | 9 | |
| YB1-20 | 20 | ≥89 | 3 | |||
| YB1-25 | 25 | ≥90 | 3.3 | |||
| YB1-32 | 32 | ≥90 | 4.2 | 16 | ||
| YB1-40 | 40 | ≥92 | 5 | |||
| YB1-50 | 50 | ≥92 | 6.2 | |||
| YB1-63 | 63 | ≥92 | 7.7 | 22 | ||
| YB1-80 | 80 | ≥92 | 9.8 | |||
| YB1-100 | 100 | ≥92 | 12.3 | |||
| YB1-115 | 115 | ≥92 | 12.3 |
