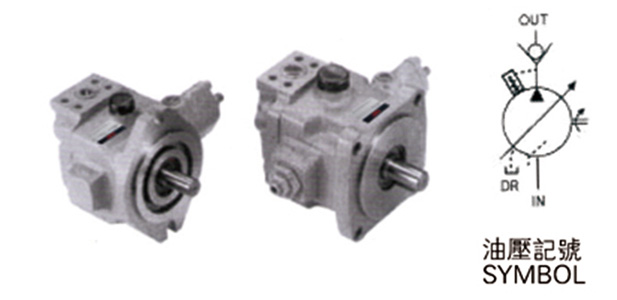

Variable vane pump (outlet flange type)
VFA1,VFB1,VFD1,VFE1
buying guides for
| VFA1 | -12 | F | -A2 |
|
SERIES NUMBER VFA1 VFB1 VFD1 VFE1 |
DISPLACEMENT Reference performance table |
Assembly Mode F:FLANGE TYPE L:FOOT TYPE |
Pressure adjustment range A1:8-18kgf/cm² A2:15-35kgf/cm² A3:30-55kgf/cm² |
Performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Flow rate without load(1/min) |
Pressure adjustment range (kgf/cm²) |
Allowable speed(rpm) | PIPING SIZE PT | WEIGHT kg | ||||
| 1500rpm | 1800rpm | MAX | MIN | EXIT | ENTRANCE | DRAIN | ||||
| VFA1-12F-A* | 70 | 10 | 12 |
A1:8-18 A2:15-35 A3:30-55 A4:50-70 |
1800 | 800 | 3/8" | 1/2" | 1/4" | 6.1 |
| VFA1-15F-A* | 12.5 | 15 | ||||||||
| VFB1-20F-A* | 16.7 | 20 | ||||||||
| VFD1-25F-A* | 21 | 25 | 1/2" | 3/4" | 8.7 | |||||
| VFD1-30F-A* | 25 | 30 | ||||||||
| VFE1-40F-A* | 33.3 | 40 | ||||||||
