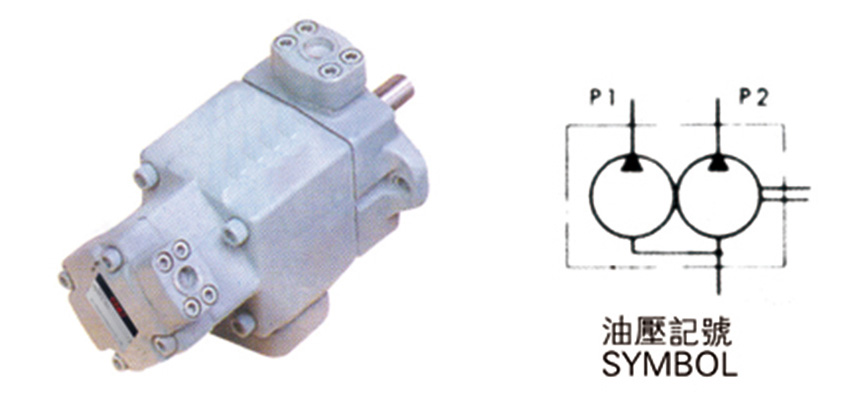

PV2R21 series high-pressure dual vane pump
buying guides for
| PV2R21 | 8 | 23 | F | R | U | U | R |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ |
1: SERIES CODE
2: DISPLACEMENT OF 1ST PUMP
3: DISPLACEMENT OF 2ND PUMP
4: MOUTING TYPE
4: ROTATION
6: INLET DIRECTION
5: 1ST OUTLET DIRECTION
6: 2ND OUTLET DIRECTION
▶ MOUTING TYPE ACCORDING TO ④
MOUTING TYPE
F: flang type
L: foot type
▶ ROTATION ACCORDING TO ⑤
ROTATION
R: clockwise
L: counter clockwise
From shaft end
▶ INLET&OUTLET DIRECTION ⑥⑦⑧
INLET&OUTLET DIRECTION
R: RIGHT SIDE
L: LEFT SIDE
U: UPPER
D: DOWN WORTH
From shaft end
Performance Table
|
MODEL NUBER MODEL NUBER |
DISPLACEMENT DISPLACEMENT |
WEIGHT kg | |
| Flange type | FOOT TYPE | ||
| PV2R21-0647 |
6、8、10 12、14、17 19、23、25 33、41、47 53、59、65 |
25 | 29.7 |
