vane pump
Current location: Home>Products

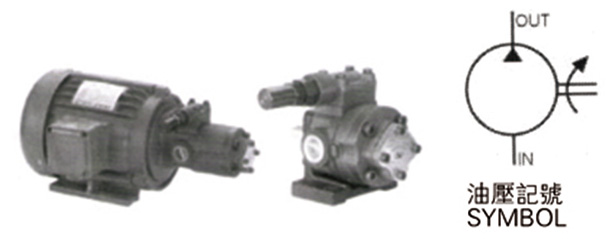

Lubricating pump, lubricating motor pump set
VOP
buying guides for
| VOP | -206 | -F | +RV | -A2 |
|
SERIES NUMBER VOP |
DISPLACEMENT (CC/REV) Reference performance table |
Assembly Mode F:FLANGE TYPE |
Regulators RV:With regulator 一: No regulator |
Pressure adjustment range A1:8-18kgf/cm² A2:5-20kgf/cm² A3:15-30kgf/cm² |
Performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Flow rate without load(1/min) |
Pressure adjustment range (kgf/cm²) |
Allowable speed(rpm) | Piping Size PT | WEIGHT kg | |||
| 1500rpm | 1800rpm | MAX | MIN | EXIT | ENTRANCE | ||||
| VOP-203 | 25 | 4.5 | 5.4 |
A1:3~8 A2:5~20 A3:15~30 |
1800 | 800 | 1/2" | 1/2" | 3.7 |
| VOP-204 | 6.0 | 7.2 | 3.7 | ||||||
| VOP-206 | 9.0 | 10.8 | 4.0 | ||||||
| VOP-208 | 12.0 | 14.4 | 4.2 | ||||||
| VOP-210 | 15.0 | 18.0 | 3/4" | 3/4" | 4.3 | ||||
| VOP-212 | 20 | 18.0 | 21.6 | 4.5 | |||||
| VOP-216 | 24.0 | 28.8 | 1500 | 4.8 | |||||
| VOP-220 | 15 | 30.0 | 36.0 | 5.3 | |||||
