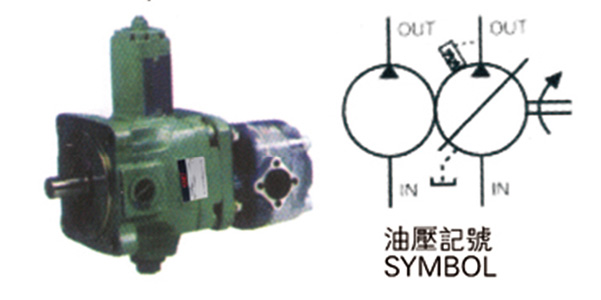

High and low pressure combination pump (including variable vane pump)
VD1+SL，VE1+SL
buying guides for
| VD1 | -30 | F | A2 | +SL |
|
SERIES NUMBER VD1 VE1 |
DISPLACEMENT (CC/REV) Reference performance table |
Assembly Mode F:FLANGE TYPE L:FOOT TYPE |
Pressure adjustment range A1:8-18kgf/cm² A2:15-35kgf/cm² A3:30-70kgf/cm² |
Combined pump model COMBINE PUMP MODEL NO. KIP.PA |
performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Flow rate without load(1/min) |
Pressure adjustment range (kgf/cm²) |
Allowable speed(rpm) | WEIGHT kg | ||||
| FOOT TYPE | FLAGE TYPE | 1500rpm | 1800rpm | MAX | MIN | FOOT TYPE | FLANGE TYPE | ||
| VD1-30LA*+SL | VD1-30LA*+SL | 70+210 | 25+SL | 30+SL |
A1:8-20 A2:15-35 A3:30-70 |
1800 | 800 | 14 | 11 |
| VE1-40LA*+SL | VE1-40LA*+SL | 70+210 | 33.3+SL | 40+SL | 14 | 11 | |||
ps:1.This series of pumps is used in conjunction with the required gears, but gears are priced separately when ordered.
