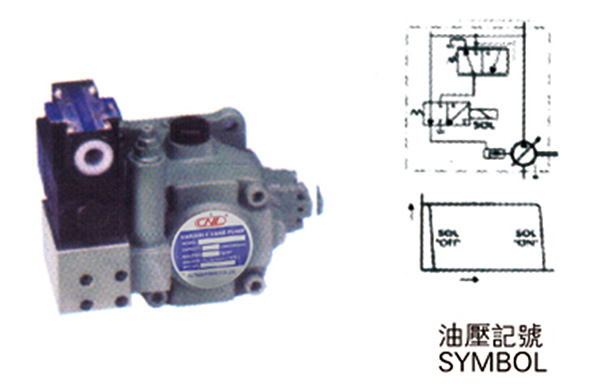

Unloader variable vane pump
VD3,VE3,VF3,VK3
buying guides for
| VD3 | -30 | F | A4 |
|
SERIES NUMBER VD3 VK3 |
DISPLACEMENT DELIVERY(CC/REV) Reference performance table REFER TO SPECIFICATION |
Assembly Mode MOUNTING TYPE F:FLANGE TYPE FLANGE MOUNTING TYPE L:FOOT TYPE FOOT MOUNTING TYPE |
PRESSURE ADJUSTING RANGE A1:15-35 Kgf/cm² A2:20-70Kgf/cm² A3:35-105Kgf/cm² A4:70-1400Kgf/cm² |
Performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Flow rate without load(1/min) | Pressure adjustment range(kgf/cm²) | rotation speed(rpm) | PIPING SIZE PT | WEIGHT kg | |||||
| 1500rpm | 1800rpm |
uninstallation When SOL is"OFF" |
uninstallation When SOL is"ON" |
MAX | MIN | EXIT | ENTRANCE | Drain | Flange type | ||
| VD3-20F-A* | 140 | 16.7 | 20 | 15-18 |
A1:15-35 A2:20-70 A2:50-105 A2:70-140 |
1800 | 800 | 1/2" | 3/4" | 3/8" | 12.9 |
| VD3-25F-A* | 21 | 25 | |||||||||
| VD3-30F-A* | 25 | 30 | |||||||||
| VE3-40F-A* | 105 | 33.3 | 40 | ||||||||
| VF3-54F-A* | 140 | 45 | 54 | 3/4" | 1" | 27.9 | |||||
| VK3-70F-A | 105 | 58.3 | 70 | ||||||||
| VK3-86F-A* | 70 | 71.67 | 86 | ||||||||
