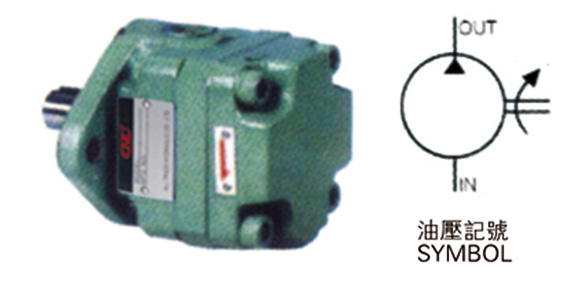

fixed vane pump FA1
buying guides for
| FA1 | -11 | F | R |
|
SERIES NUMBER FA1 |
Displacement DELVERY(cc/rev) Refer to the performance table REFFRTO SPECIFICATION |
Rotation direction SHAFT ROTATING (VIEW FROM SHAFT END) R:CLOCKWISE L:COUNTER CLOCKWISE |
Performance Table
FA1 AXIS SHAFT φ19.05
|
MODEL MODEL |
DISPLACEMENT DELIVERY cc/rev |
MAX.PRESSURE kgf/cm² |
Characteristics at 1800rpm and viscosity of 20cst Operating characteristics at 1800rpm with 20cst fluid |
Allowable speed rpm SPEED RANGE |
PIPING SIZE PT PORTS SIZE |
WEIGHT WEIGHT(kg) |
||||||||
| FLOW I/min DELIVERY | POWER kw INPUT |
MIN MIN |
MAX MAX |
EXIT OUT |
Entrance IN |
FOOT TYPE FOOT TYPE |
FLANGE TYPE |
|||||||
| 5kgf/cm² | 35kgf/cm² | 70kgf/cm² | 5kgf/cm² | 35kgf/cm² | 70kgf/cm² | |||||||||
| FA1-05 | 5 | 70 | 7.6 | 6.9 | 5.55 | 0.15 | 0.8 | 1.5 | 900 | 1800 | 3/8" | 1/2" | 5.5 | 4.5 |
| FA1-08 | 8 | 70 | 14.6 | 13.4 | 11.55 | 0.23 | 1.2 | 2.3 | 900 | 1800 | 3/8" | 1/2" | 5.5 | 4.5 |
| FA1-11 | 11 | 70 | 20.7 | 19.2 | 17.55 | 0.30 | 1.5 | 3.2 | 900 | 1800 | 3/8" | 1/2" | 5.5 | 4.5 |
