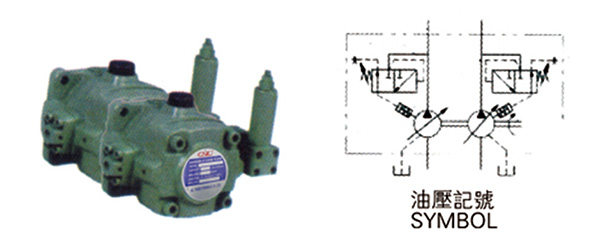

Dual variable vane pump
VD2D2,VE2E2,VF2F2,VK2K2
buying guides for
| VD2D2 | -30+30 | F | A3-A3 |
|
SERIES NUMBER VD2D2 VE2E2 VF2F2 VK2K2 |
DISPLACEMENT DELIVERY(CC/REV) Reference performance table REFER TO SPECIFICATION |
Assembly Mode MOUNTING TYPE F:FLANGE TYPE FLANGE MOUNTING TYPE L:FOOT TYPE FOOT MOUNTING TYPE |
PRESSURE ADJUSTING RANGE A2:20-70Kgf/cm² A3:35-105Kgf/cm² A4:70-140Kgf/cm² |
Performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Flow rate without load(1/min) |
Pressure adjustment range (Kgf/cm²) |
Rotation Speed(rpm) | Piping SizePT | WEIGHT(kg) | ||||
| 1500rpm | 1800rpm |
MAX MAX |
MIN MIN |
出口 OUT |
ENTRANCE IN |
Drain DR |
FLANGE TYPE | |||
| VD2D2-2020F-A* | 140 | 16.6+16.6 | 20+20 |
A2:20-70 A3:35-105 A4:70-140 |
1800 | 800 | 1/2" | 3/4" | 3/8" | 20 |
| VD2D2-2525F-A* | 140 | 20.8+20.8 | 25+25 | 1/2" | 3/4" | 3/8" | 20 | |||
| VD2D2-3030F-A* | 140 | 25+25 | 30+30 | 1/2" | 3/4" | 3/8" | 20 | |||
| VE2E2-4040F-A* | 105 | 30.3+30.3 | 40+40 | 1/2" | 3/4" | 3/8" | 20 | |||
| VF2F2-5454F-A* | 140 | 45+45 | 54+54 | 3/4" | 1" | 3/8" | 50 | |||
| VK2K2-7070F-A* | 105 | 58.3+58.3 | 70+70 | 3/4" | 1" | 3/8" | 50 | |||
