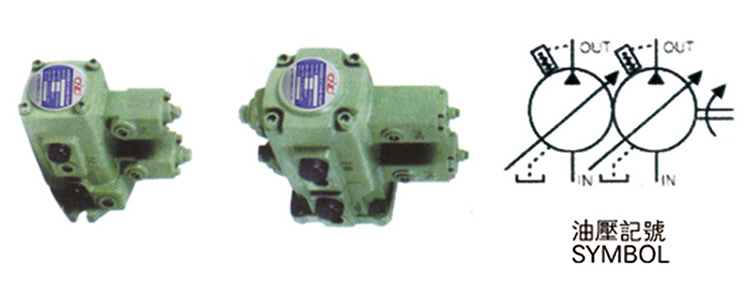

Dual variable vane pump
VA1A1,VB1B1,VD1D1,VE1E1
buying guides for
| VD1D1 | -30+30 | F | A2-A2 |
|
SERIES NUMBER VA1A1 VB1B1 VD1D1 VE1E1 |
DISPLACEMENT(CC/REV) Reference performance table |
Assembly Mode F:FLANGE TYPE L:FOOT TYPE |
Pressure adjustment range A1:8-20kgf/cm² A2:15-35kgf/cm² A3:30-70kgf/cm² |
※ Near the shaft side is the front pump, generally two pumps with the same displacement
performance meter
| MODEL |
Max use pressure Kgf/cm² |
Flow rate without load(1/min) | Pressure adjustment range(kgf/cm²) | rotation speed(rpm) | Piping Size PT | WEIGHT kg | ||||
| 1500rpm | 1800rpm | MAX | MIN | EXIT | ENTRANCE | DRAIN | Flange type | |||
| VA1A1-0808F-A* | 70 | 6.7+6.7 | 8+8 |
A1:8-20 A2:15-35 A3:30-70 |
1800 | 800 | 3/8" | 1/2" | 1/4" | 9.0 |
| VA1A1-1212F-A* | 10+10 | 12+12 | ||||||||
| VA1A1-1515F-A* | 12.5+12.5 | 15+15 | ||||||||
| VB1B1-2020F-A* | 16.7+16.7 | 20+20 | 9.5 | |||||||
| VB1B1-2424F-A* | 20+20 | 24+24 | ||||||||
| VD1D1-2525F-A* | 21.7+21.7 | 25+25 | 1/2" | 3/4" | 17.0 | |||||
| VD1D1-3030F-A* | 25+25 | 30+30 | ||||||||
| VE1E1-4040F-A* | 33.3+33.3 | 40+40 | 18.0 | |||||||
| VE1E1-4545F-A* | 37.5+37.5 | 45+45 | ||||||||
