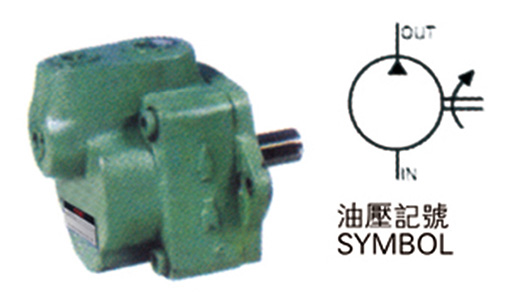

fixed vane pump FB1
buying guides for
| FB1 | -12 | F | R |
|
SERIES NUMBER FB1 |
Displacement DELVERY(cc/rev) Reference performance table REFFRTO SPECIFICATION |
Assembly form MOUNTIONG TYPE F:Flange Type FLANGE MOUNTING TYPE L:FOOT TYPE FOOT MOUNTING TYPE |
Direction of rotation SHAFT ROTATING (VIEW FROM SHAFT END) R:CLOCKWISE L:COUNTER CLOCKWISE |
Performance meter
FB1 Center of Axis SHAFT φ16
|
MODEL MODEL |
DISPLACEMENT DELIVERY cc/rev |
MAX.PRESS URE kgf/cm² |
Characteristics at 1800rpm, viscosity 20cst Operating characteristics at 1800rpm with 20cst fluid |
Allowable speed rpm SPEED RANGE |
PIPING SIZE PT PORTS SIZE |
WEIGHT WEIGHT(kg) |
||||||||
| FLUX I/min DELIVERY | POWER kw INPUT |
MIN MIN |
MAX MAX |
EXIT OUT |
ENTRANCE IN |
FOOT TYPE FOOT TYPE |
FLANGE TYPE |
|||||||
| 5kgf/cm² | 35kgf/cm² | 70kgf/cm² | 5kgf/cm² | 35kgf/cm² | 70kgf/cm² | |||||||||
| FB1-05 | 4.3 | 70 | 7.7 | 7.2 | 6.5 | 0.20 | 0.75 | 1.5 | 600 | 2200 | 3/8" | 1/2" | 4.5 | 3.5 |
| FB1-07 | 7.0 | 70 | 12.6 | 11.8 | 11.0 | 0.25 | 1.05 | 2.1 | 600 | 2200 | 3/8" | 1/2" | 4.5 | 3.5 |
| FB1-12 | 12.3 | 70 | 22.1 | 21.6 | 21.0 | 21.0 | 1.65 | 3.4 | 600 | 2200 | 3/8" | 1/2" | 4.5 | 3.5 |
