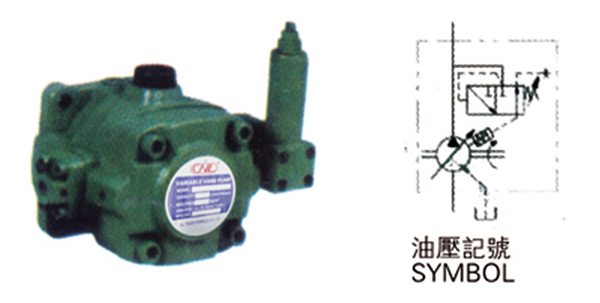

Variable displacement (medium and high pressure) vane pump
VD2.VE2.VF2.VK2
buying guides for
| VD2 | -30 | F | A4 |
|
SERIES NUMBER VD2 VE2 VF2 VK2 |
DISPLACEMENT DELVERY(cc/rev) Reference performance table REFFR TO SPECIFICATION |
Assembly form MOUNTIONG TYPE F:FLANGE TYPE FLANGE MOUNTING TYPE L:FOOT TYPE FOOT MOUNTING TYPE |
Direction of rotation SHAFT ROTATING VIEW FROM SHAFT END) R:CLOCKWISE L:COUNTER CLOCKWISE |
Performance Meter
VD2,VE2 center of axis SHAFT ф19.05
|
MODEL MODEL |
DISPLACEMNET DELIVERY cc/rev |
Maximum Operating Pressure kgf/cm² |
Flow rate without load(/min) DELIVERY AT UNLOADING |
Pressure adjustment range(Kgf/cm²) PRESSURE ADJUSTING RANGE |
rotation speed rpm SPEED RANGE |
PIPING SIZE PT PORTS SIZE |
WEIGHT WEIGHT(kg) |
||||
| 1500rpm | 1800rpm |
MAX MAX |
MIN MIN |
EXIT OUT |
ENTRANCE IN |
DRAIN DR. |
Flange Type FLANGE TYPE |
||||
| VD2-20FA* | 11.1 | 140 | 16.6 | 20 |
A2:20-70 A3:50-105 A4:70-140 |
1800 | 800 | 1/2" | 3/4" | 3/8" | 10 |
| VD2-25FA* | 13.9 | 20.8 | 25 | ||||||||
| VD2-30FA* | 16.7 | 25 | 30 | ||||||||
| VE2-40FA* | 22.2 | 105 | 33.3 | 40 | |||||||
| VF2-54FA* | 30 | 140 | 45 | 54 | 3/4" | 1" | 3/8" | 25 | |||
| VK2-70FA* | 38.9 | 105 | 58.3 | 70 | |||||||
| VK2-86FA* | 47.8 | 70 | 71.7 | 86 | |||||||
