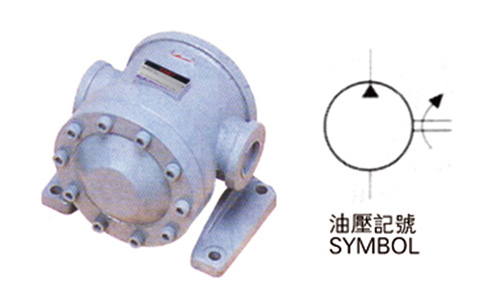

50T/150T series low pressure quantitative vane pump
buying guides for
| 50T | 36 | F | R |
| ① | ② | ③ | ④ |
1: SERIES CODE
2: DISPLACEMENT(cc/rev)
3: FRANGE TYPE
4: ROTATION
| Model Number | Displacement | Rated working pressure | Maximum pressure(PSI) | WEIGHT/kg | OIL PORT SIZE | ||
| MODEL NUBER | DISPLACEMENT | MAX PRESSURE | WORKING PRESSURE | Flange type | Foot type | Flange type | Oil discharge |
| 50T-07 | 6.8 |
70Kgf/cm² 1000psi |
65Kgf/cm² 950psi |
9 | 10.5 | 1" | 3/4" |
| 50T-12 | 11.6 | ||||||
| 50T-17 | 16.5 | ||||||
| 50T-23 | 22.9 | ||||||
| 50T-26 | 25.9 | ||||||
| 50T-36 | 36 | ||||||
| 50T-39 | 38.8 | ||||||
| 150T-48 | 47.7 |
70Kgf/cm² 1000psi |
65Kgf/cm² 950psi |
25 | 26 | 1,1"/2 | 1,1" |
| 150T-61 | 61.1 | ||||||
| 150T-75 | 74.9 | ||||||
| 150T-94 | 93.6 | ||||||
| 150T-116 | 115.6 | ||||||
