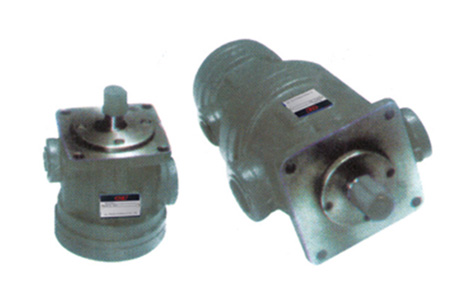

vane pump

※ Features and uses

The YB-D series vane pump series is a double acting quantitative vane pump. The pump has a floating pressure compensation oil distribution plate with oil pressure action, which can automatically compensate for axial clearance. The stator, blades, and oil distribution plate are combined as vulnerable parts for easy maintenance. The pump is generally in forward rotation and can be installed in reverse as needed. It is widely used in lifting and transportation vehicles, construction machinery, and other walking machinery, as well as in hydraulic systems of general industrial equipment.

※ Technical Parameter single pump

Model specifications	Displacement ml/r	Rated pressure Mpa	Nominal speed rpm	Speed Range rpm	Drive powerKw	Weight kg
YB-D6.3	6.3	10	1000	600-1800	1.4	9
YB-D12	12				2.5
YB-D16	16				3.5
YB-D20	20				4
YB-D25	25				5.1
YB-D32	32				6.5
YB-D40	40			960	8.2	22
YB-D50	50				10.2
YB-D63	63				8
YB-D80	80				16.3
YB-D100	100				20.4

Double pound
Dual pump: composed of two single pumps, each of which maintains its original displacement pressure and noise. The driving power is the sum of the driving power of the two single pumps, and the speed of the two pumps is the same.
