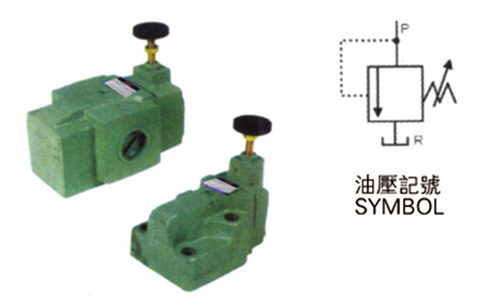

Pilot operated relief valves BT,BG
buying guides for
| B | G | -06 | B |
|
SERIES NUMBER B |
Connection Type G:SUB-PLATE TYPE T:THREAD TYPE |
Thoroughfare 03 06 10 |
Pressure adjustment range B:10-70Kgf/cm² C:35-140Kgf/cm² D:70-250Kgf/cm² |
Performance meter
| MODEL |
Maximum use pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Rated flow rate (l/min) |
WEIGHT(KG) | ||
| PLATE | tubular | FormatDG | tubularDT | |||
| BG-03 | BT-03 | 250 |
B:10-70 C:35-140 H:70-250 |
100 | 5.0 | 2.4 |
| BG-06 | BT-06 | 200 | 6.0 | 4.0 | ||
| BG-10 | BT-10 | 400 | 8.7 | 7.0 | ||
