pressure relay
buying guides for
| (M)JCS | -2 | P | LL |
|

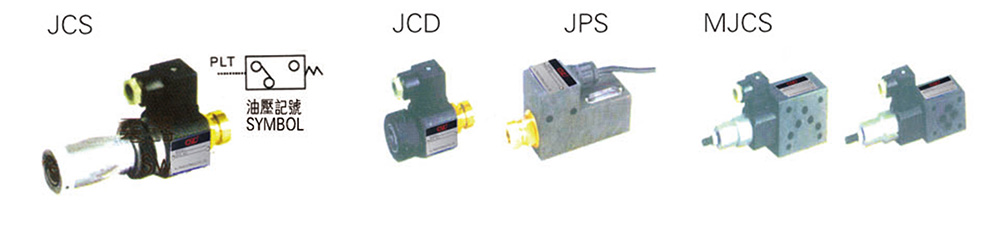

SERIES NUMBER JPS JCS JCD MJCS |
Thoroughfare VALVE SIZE 02 03 |
Action type CONTROL TYPE P:P silver tongued,PORT A:A silver tongued,PORT B:B silver tongued,PORT W:AB silver tongued,PORT |
PRESSURE.ADJ.RANGE Reference performance table AS SPECIFICATION |
Performance Meter
| MODEL |
Maximum operating pressure kgf/cm² |
PRESSURE.ADJ.RANGE kgf/cm² |
WEIGHT kg |
| JPS-02HM | 210 | 30-210 | 1.45 |
| LPS-02L | 70 | 25-60 | 1.45 |
| JPS-02LL | 5-60 | 1.45 | |
| JCS-02N | 210 | 30-210 | 1 |
| JCS-02NL | 70 | 25-60 | 1 |
| JCS-02NLL | 5-60 | 1 | |
| JCD-02S | 30 | 4-26 | 0.8 |
|
MJCS-02PN MJCS-02AN MJCS-02BN MJCS-02WN |
210 | 30-210 | 1.8 |
| 2.5 | |||
|
MJCS-02PL MJCS-02AL MJCS-02BL MJCS-02WL |
70 | 25-60 | 1.8 |
| 2.5 | |||
|
MJCS-02PLL MJCS-02ALL MJCS-02BLL MJCS-02WLL |
5-60 | 1.8 | |
| 2.5 | |||
|
MJCS-03PN MJCS-03AN MJCS-03BN MJCS-03WN |
210 | 30-210 | 2.8 |
| 2.5 | |||
|
MJCS-03PL MJCS-03AL MJCS-03BL MJCS-03WL |
70 | 25-60 | 2.8 |
| 3.5 | |||
|
MJCS-03PLL MJCS-03ALL MJCS-03BLL MJCS-03WLL |
5-60 | 2.8 | |
| 3.5 |
