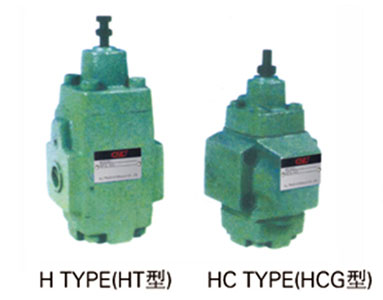

Sequence valve, counterbalance valve, unloading valve
HT,HCT,HG,HCG
buying guides for
| H | C | G | -03 | B | 4 |
|
SERIES NUMBER H |
With check valve C:ADDED TO DESIGNATE INTEGRAL CHECK |
Connection type G:SUB-PLATE TYPE T:THREAD TYPE |
Thoroughfare 03 06 10 |
Pressure adjustment range Kgf/cm² A:18-35 B:35-70 C:70-140 |

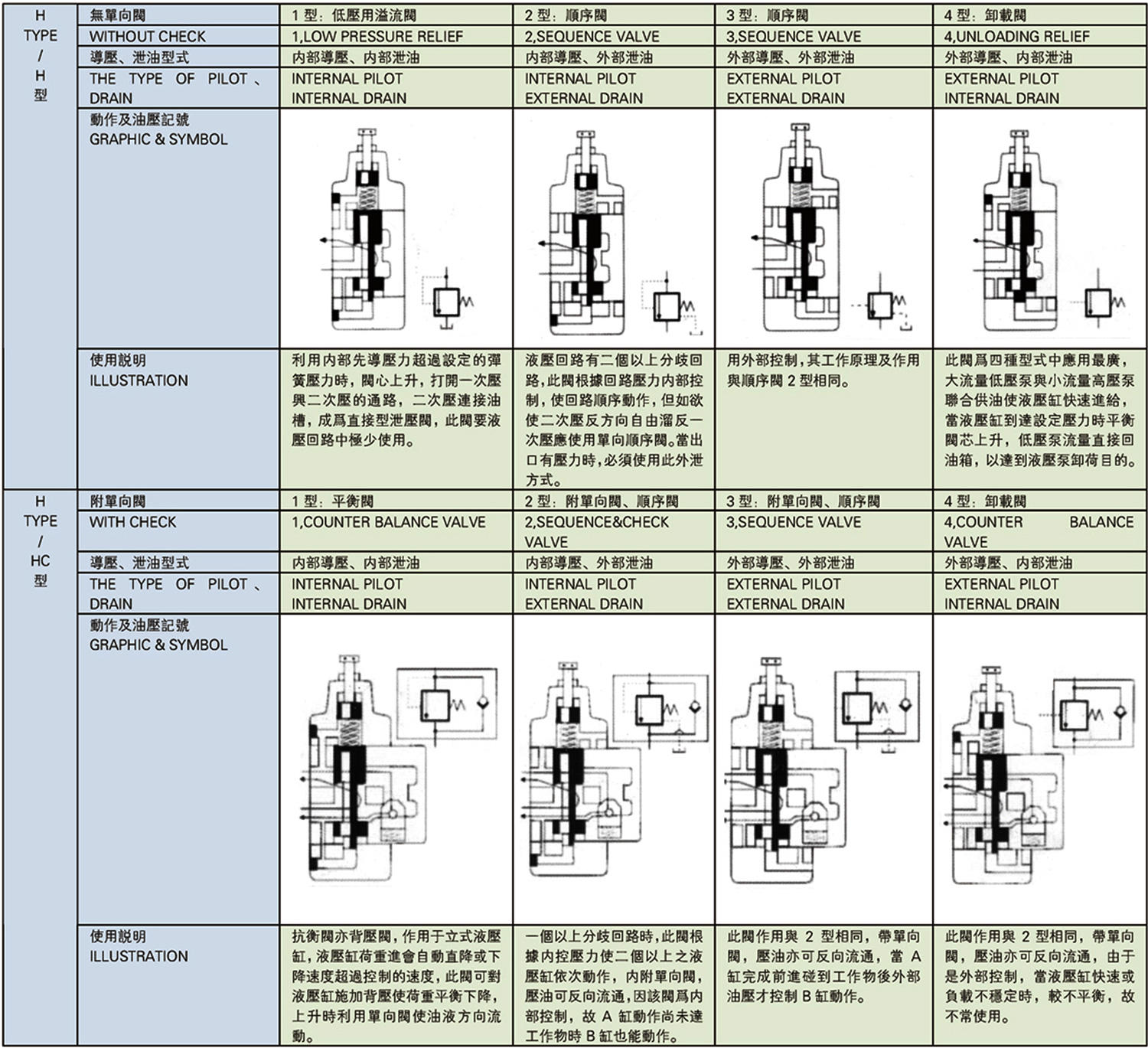

Forms of control （Refer to the table below） |
Performance Meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Maximum flow rate (l/min) |
WEIGHT(KG) | ||
| PANEL | Tubular | PANEL DG | Tubular DT | |||
| HG-03 | HT-03 | 250 |
A:18-35 B:35-70 C:70-140 H:70-210 |
50 | 4.0 | 3.7 |
| HCG-06 | HCT-06 | 4.8 | 4.1 | |||
| HG-06 | HT-06 | 125 | 6.1 | 6.2 | ||
| HCG-06 | HCT-06 | 7.7 | 7.8 | |||
| HG-10 | HT-10 | 250 | 11.0 | 12.0 | ||
| HCG-10 | HCT-10 | 13.8 | 13.8 | |||
