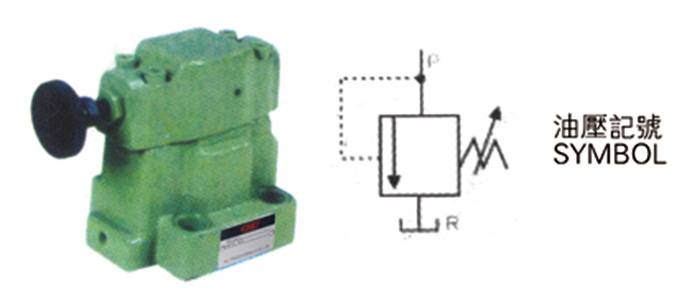

Pilot relief valve (silent type) SBG
buying guides for
| SB | G | -03 | B | L |
|
SERIES NUMBER SB |
Connection type G:SUB-PLATE TYPE T:THREAD TYPE |
Thoroughfare 03 06 10 |
Pressure adjustment range B:10-70Kgf/cm² C:35-140Kgf/cm² D:70-250Kgf/cm² |
Handle position L:Standard (left side) From the pressure gauge port R:(right side) |
Performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Rated flow rate (l/min) |
WEIGHT(KG) |
| Panel | ||||
| SBG-03 | 250 |
B:10-70 C:35-140 H:70-250 |
100 | 4.1 |
| SBG-06 | 200 | 5.4 | ||
| SBG-10 | 400 | 9.5 |
