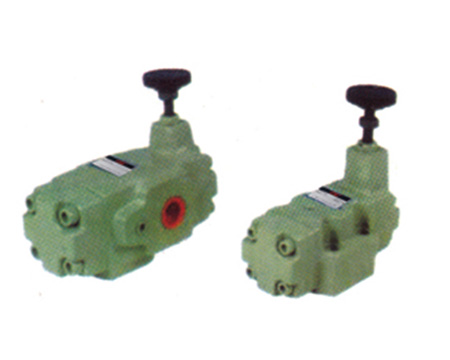

pressure reducing valve RT,RCT,RG,RCG
buying guides for
| RC | G | -03 | B |
|
SERIES NUMBER RC |
Connection type G:SUB-PLATE TYPE T:THREAD TYPE |
thoroughfare 03 06 10 |
Pressure adjustment range B:10-70Kgf/cm² C:35-140Kgf/cm² D:70-250Kgf/cm² |
performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Rated flow rate (l/min) |
O il drain (l/min) |
WEIGHT(KG) | ||
| PANEL | TUBULAR | PANEL DG | TUBULAR DT | ||||
| RG-03 | RT-03 | 350 |
B:10-70 C:35-140 H:70-250 |
50 | 0.8 | 4.5 | 4.3 |
| RCG-03 | RCT-03 | 5.4 | 4.8 | ||||
| RG-06 | RT-06 | 125 | 1.0 | 6.8 | 6.9 | ||
| RCG-06 | RCT-06 | 8.1 | 7.8 | ||||
| RG-10 | RT-10 | 250 | 1.2 | 11.0 | 12.0 | ||
| RCG-10 | RCT-10 | 13.8 | 13.8 | ||||
