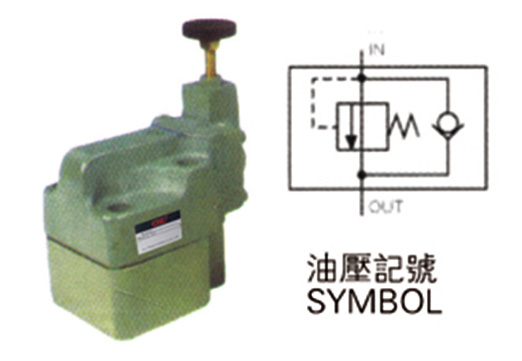

Back pressure valve MCAG
buying guides for
| MAC | G | -06 | B |
|
SERIES NUMBER MAC |
Connection type G:SUB-PLATE TYPE |
Thoroughfare 06 10 |
Pressure adjustment range B:10-70Kgf/cm² C:35-140Kgf/cm² D:70-250Kgf/cm² |
Performance meter
|
MODEL Panel |
Maximum operating pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Maximum flow rate (l/min) |
WEIGHT(KG) |
| MCAG-06 | 350 |
B:10-70 C:35-140 H:70-250 |
125 | 12 |
| MCAG-10 | 250 | 18 |
