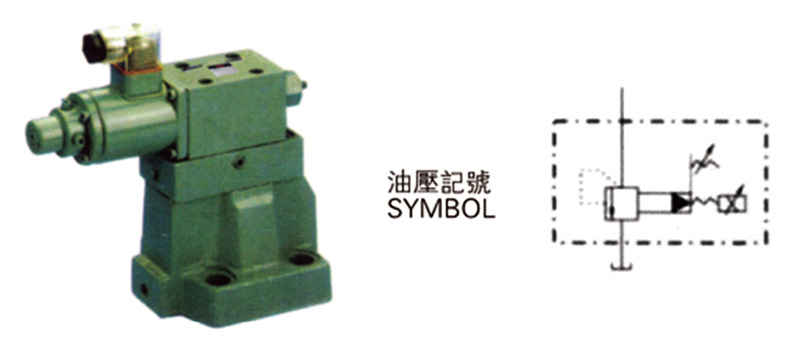

Electro-hydraulic proportional pilot relief valve EDG
buying guides for
| EBG | -06 | -H | - |
|
SERIES NUMBER EBG |
Thoroughfare VALVE SIZE 03 06 10 |
PRESSURE ADJ.RANGE(kgf/cm²) C:5-70 H:10-250 |
SAFTY VALVE WITH T:WITHOUT |
Performance Meter
| MODEL |
FLUX (l/min) |
High pressure ADJ range kgf/cm² |
Rated voltage (mA) |
Coil Resistance (Ω) |
Hysteresis loop | Repeatability | WEIGHT kg |
| EBG-03 | 3-100 |
C:5-160 H:10-250 |
C:770/H:820 | 10 | LESS THAN 2% | 1% | 5.6 |
| EBG-06 | 3-200 | C:750/H:800 | 6.3 | ||||
| EBG-10 | 3-400 | C:730/H:780 | 10 |
