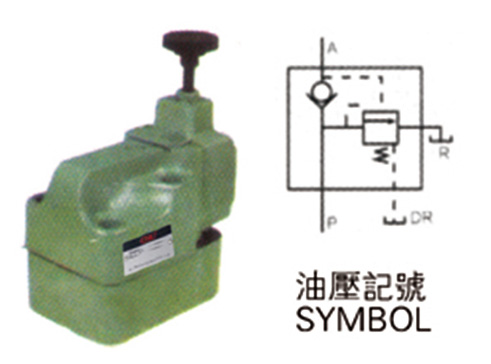

Unloading relief valve BUCG
buying guides for
| BUC | G | -06 | B |
|
SERIES NUMBER BUC |
Connection type G:SUB-PLATE TYPE |
Thoroughfare 06 |
Pressure adjustment range B:10-70Kgf/cm² C:35-140Kgf/cm² D:70-250Kgf/cm² |
performance meter
|
MODEL panel |
Maximum operating pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Maximum flow rate (l/min) |
WEIGHT(KG) |
| BUCG-03 | 250 |
B:10-70 C:35-140 H:70-250 |
90 | 8.5 |
| BUCG-06 | 150 | 12.5 |
