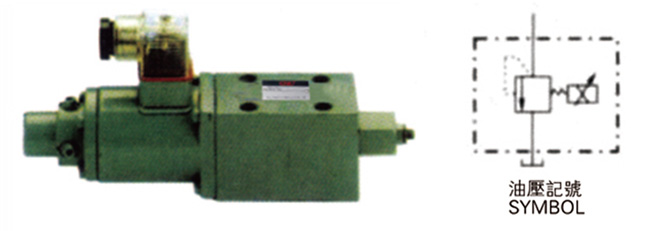

Electro-hydraulic proportional pilot relief valve EDG
buying guides for
| EDG | -01 | -H | - |
|
SERIES NUMBER EDG |
Thoroughfare VALVE SIZE 01 |
PRESSURE ADJ.RANGE(kgf/cm²) B:5-70 C:10-160 H:12-250 |
SAFTY VALVE WITH T:WITHOUT |
Performance Meter
| MODEL |
FLUX (l/min) |
High pressure ADJ range kgf/cm² |
Rated Voltage (mA) |
Coil resistance (Ω) |
Hysteresis loop | Repeatability | WEIGHT kg |
| EDG-01 | 0.3-2 | B:5-70 | 800 | 10 | Less than 2% | 1% | 2 |
| C:10-160 | 900 | ||||||
| H:12-250 | 950 |
