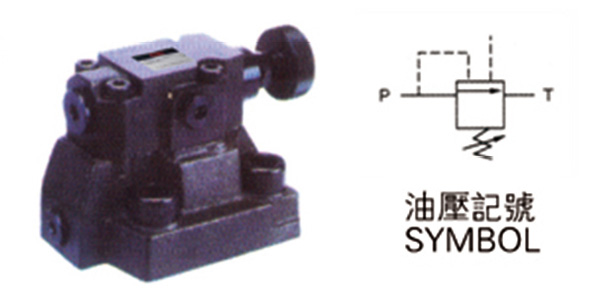

Pilot relief valve DB
buying guides for
| DB | -03 | 3 |
|
SERIES NUMBER DB |
Thoroughfare 03:10Thoroughfare 06:25Thoroughfare 10:32Thoroughfare |
Pressure adjustment range 1:*-100Kgf/cm² 3:*12-350Kgf/cm² |
Performance Meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Rated flow rate (l/min) |
WEIGHT(KG) |
| DB-03 | 350 |
1:*-100 3:*12-350 |
250 | 3.4 |
| DB-06 | 500 | 5 | ||
| DB-10 | 650 | 5.9 |
