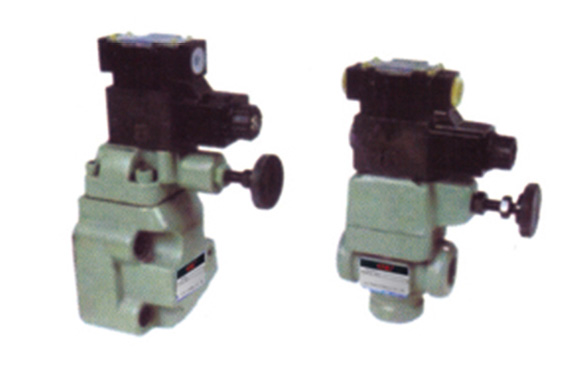

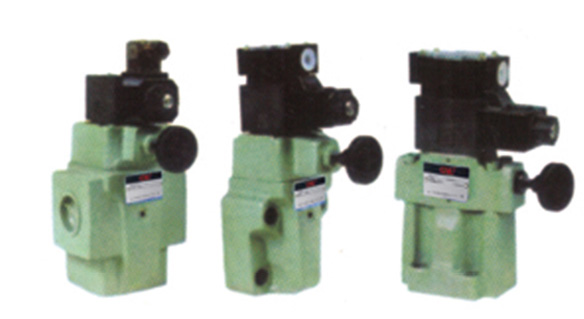

electromagnetic spill valve

BST,BSG,SBSG

BHSG,BHST

buying guides for

BS	G	-06	H	-2B2	-A2	5	-D5	-2P
SERIES NUMBER,G,BST,BHS GM,BHST,SBS	Connection type G:SUB-PLATE TYPE T:THREAD TYPE	Thoroughfare 03 06 10	Pressure adjustment range B:10-70Kgf/cm² C:35-140Kgf/cm² D:70-250Kgf/cm²	The functional forms are listed in the table below	Coil type A1:AC110V D1:DC12V A2:AC220V D2:DC24V A3:AC380V	Frequency 5:50HZ 6:60HZ	Junction box type D4:junction boxes D5:plug	Multi-stage pressure control One single stage pressure control 2P:Two-stage pressure control 3P:Three-stage pressure control

ps:This series must be used with solenoid valve, solenoid valve specifications are listed below, but when ordering, only remember the body, solenoid valve price is calculated separately.

performance meter

Oil pressure marking and control mode

MODEL	Multi-stage pressure control	Oil pressure mark	Winding excitation and conductive action state
			CIRCLE A	CIRCLEB	Magnetic conductivity also hole action state
2B2	Single-stage pressure control		-	OFF	Oil tank (unloading)

				ON	B HOLE
2B2L	Single-stage pressure control		OFF	-	Closed (regulator setting)

			ON		B HOLE
2B2	2P:Two-stage pressure control		-	OFF	A HOLE
					B HOLE
				ON	Closed (regulator setting)
3C2	3P:Three-stage pressure control inputs		OFF	OFF	B HOLE
			ON	OFF	A HOLE
			OFF	ON	Oil tank (unloading)
3C3	2P:Two-stage pressure control		OFF	OFF	A HOLE
			ON	OFF	B HOLE
			OFF	ON
