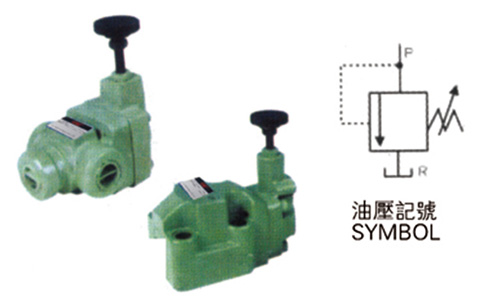

Pilot relief valve (enhanced type)BHT,BHG
buying guides for
| BH | G | -06 | B |
|
SERIES NUMBER BH |
Connection type G:SUB-PLATE TYPE T:THREAD TYPE |
Thoroughfare 06 10 |
Pressure adjustment range B:10-70Kgf/cm² C:35-140Kgf/cm² D:70-250Kgf/cm² |
Performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Rated flow rate (l/min) |
WEIGHT(KG) | ||
| panel | tubular | Panel DG | Tubular DT | |||
| - | BHT-04 | 250 |
B:10-70 C:35-140 H:70-250 |
100 | - | 2.4 |
| BHG-06 | BHT-06 | 200 | 7.2 | 4.0 | ||
| - | BHT-10 | 400 | - | 10.0 | ||
