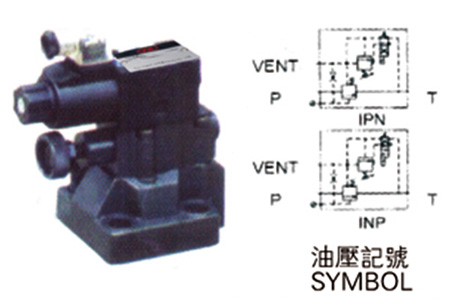

Solenoid controlled pilot-operated relief valve (silent type)DBW
buying guides for
| DBW | -03 | -1PN | -1 | -D24 | -D5 |
|
SERIES NUMBER DBW |
Thoroughfare 03:10Thoroughfare 06:25Thoroughfare 10:32Thoroughfare |
control method IPN:Normally open unloading INP:Normally Closed Pressure Retention |
Pressure regulating range 1:*-100Kgf/cm 3:*12-350Kgf/cm² |
Coil form table below |
Wiring Method D4:Junction box with indicator light D5:Plug-in Retainer with Indicator |
performance meter
| MODEL |
Maximum operating pressure Kgf/cm² |
Pressure adjustment range Kgf/cm² |
Rated flow rate (l/min) |
WEIGHT(KG) |
| DBW-03-1PN-** | 350 |
1:*-100 3:*12-350 |
250 | 3.4 |
| DBW-06-1PN-* | 500 | 5 | ||
| DBW-06-1PN-** | 650 | 5.9 |
Coil type
| A240 | AC240V、60HZ AC220V、50HZ |
| A220 | AC220V、60HZ AC200V、50HZ |
| A120 | AC120V、60HZ AC100V、50HZ |
| A110 | AC110V、60HZ AC100V、50HZ |
| R240 | AC240V、60HZ AC220V、50HZ |
| R220 | AC220V、60HZ AC220V、50HZ |
| R120 | AC120V、60HZ AC110V、50HZ |
| R110 | AC110V、60HZ AC100V、50HZ |
| D12 | DC12V |
| D24 | DC24V |
